2.8-inch screen (D) HD color screen 240*320 resolution tft LCD screen Used for instrumentation household appliances

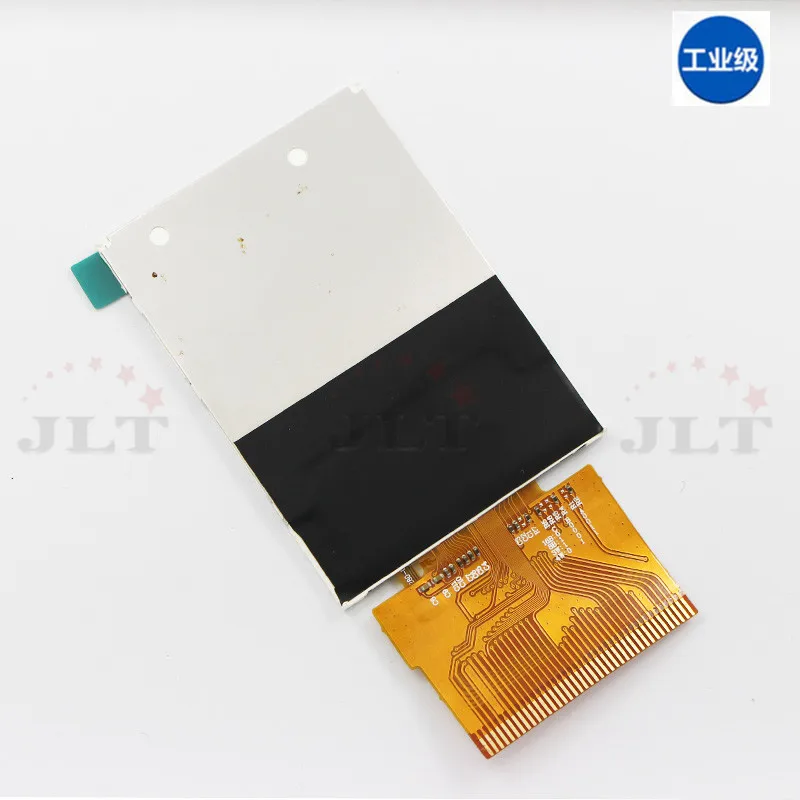

2.8-inch screen (D) HD color screen 240*320 resolution tft LCD screen Used for instrumentation household appliances image 1

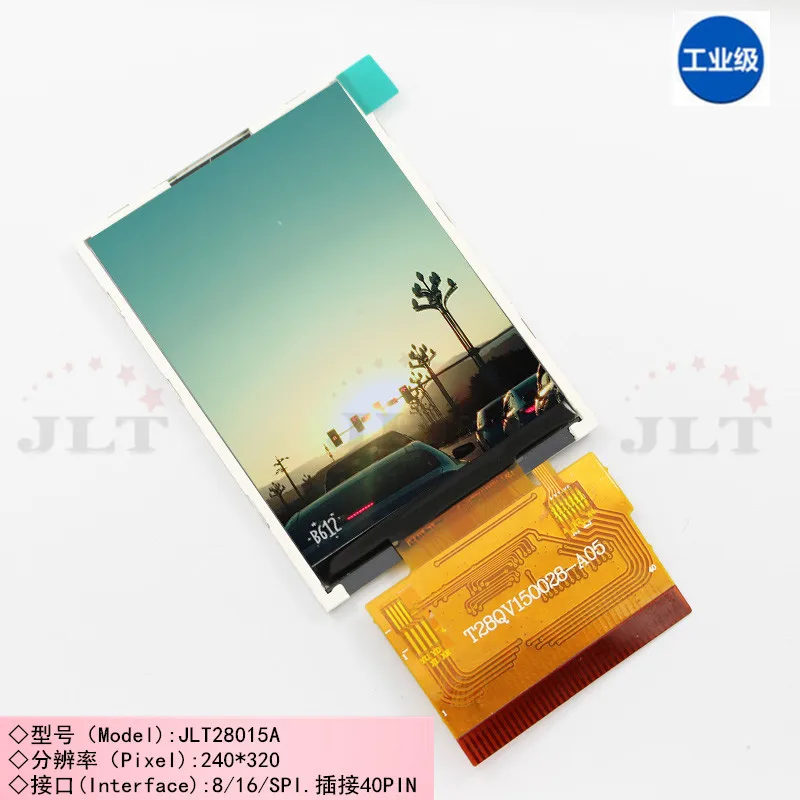

2.8-inch screen (D) HD color screen 240*320 resolution tft LCD screen Used for instrumentation household appliances image 2

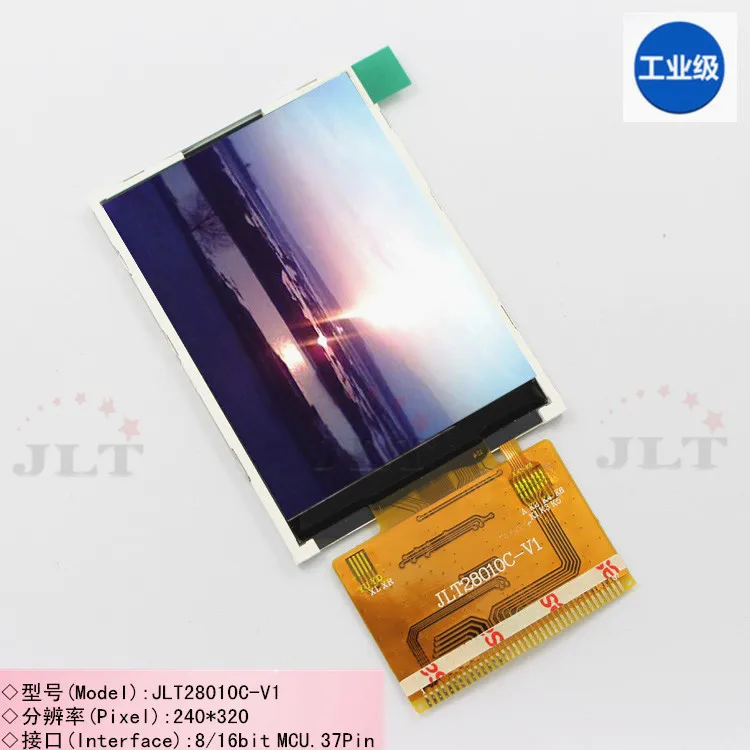

2.8-inch screen (D) HD color screen 240*320 resolution tft LCD screen Used for instrumentation household appliances image 3

2.8-inch screen (D) HD color screen 240*320 resolution tft LCD screen Used for instrumentation household appliances

US $11.08

Description

I am a 2.8 inch HD color LCD screen. It has the characteristics of small area, wide viewing angle and high pixel. The thickness of the product is only2.25mm. The screen has a resistive touch control. The small 43.2*57.6 mm active area gives you a rich, colorful viewing experience. Widely used in instrumentation, household appliances, communication equipment, industrial equipment and electronic toys. It is the best display screen for makers DIY.

Basic Information

Panel brand: IVO Number of interfaces:40PIN Resolution:240X320 Color:65K/262K Driver IC: ILI9341 Interface Types: Parallel (8-bit, 16-bit) SPI Active area:43.2*57.6 mm Thickness:2.25 mm Touch type:R Touch pad

Interface definition

PIN pin Name Description Circuit connection 1 GND Connect to GND Power GND 2 DB0 data cable connected to ordinary IO port 3 DB1 data cable connected to ordinary IO port 4 DB2 data cable connected to ordinary IO port 5 DB3 data cable connected to ordinary IO port 6 GND Power Ground Connected to the negative pole of the power supply 7 VCC power supply VCC (2.8V/3.3V) 8 CS LCD driver chip select signal Connect to normal IO port 9 RS register selection RS=1: Write parameters. Data.RS=0: Write command Connect to normal IO port 10 WR write enable signal. Active low connected to normal IO port 11 RD read enable signal. Active low connected to normal IO port 12 IM0 select bit. The circuit can be left floating. Empty 13 X+ touch screen XL connected to touch chip analog terminal XL 14 Y+ touch screen YU connected to touch chip analog terminal YU 15 X- touch screen XR connected to touch chip analog terminal XR 16 Y- touch screen YD connected to touch chip analog terminal YD 17 LEDA backlight positive (connected 3.1-3.4V) is best powered by 40mA constant current 3.1-3.4V 18-21 K1-K4 Backlight Negative Negative Backlight Power Supply Negative 22 IM3 empty foot, can be left floating 23 DB4 data cable When using an 8-bit interface, connect GND to a normal IO port. 24-31 DB8-DB15 data cable connected to normal IO port 32 RESET LCD driver chip reset signal. Low level reset Connect to normal IO port or hardware reset circuit 33 VCC power supply VCC (2.8V/3.3V) Connected to the positive pole of the power supply VCC (2.8V/3.3V) 34 IOVCC power supply VCC (1.8V/2.8V/3.3V) Connected to the positive pole of the power supply VCC (2.8V/3.3V) 35 GND Power Ground Power Ground 36 DB5 data cable connected to normal IO port 37 DB6 data cable connected to ordinary IO port 38 DB7 data cable connected to normal IO port 39 GND Power Ground Power Ground 40 GND Power Ground Power Ground

Related products

FAQ

1. Does the product have after sales service? Yes.We have.

2.What is the quality of the goods? We are a manufacturer and seller of goods. So guarantee the high quality of the goods.

3. Can I customize the screen? As long as the number of custom screens reaches more than 200. Pay for 50% deposit can be customized.

4. Can I get free shipping? Free shipping within a certain amount.

5.Can enjoy more discounts on purchases? You can enjoy more discounts when you purchase more.

6. Can I request a refund? If you receive the goods within 7 days. You can apply for a return/refund/exchange.If you are not satisfied.

Package Content

Weight: 0.145 kg 2.8inch tff lcd (D)(JLT28015A) x 1
