2.8-inch TFT LCD (E) HD color screen resolution 240x320 For instrumentation, household appliances, etc.

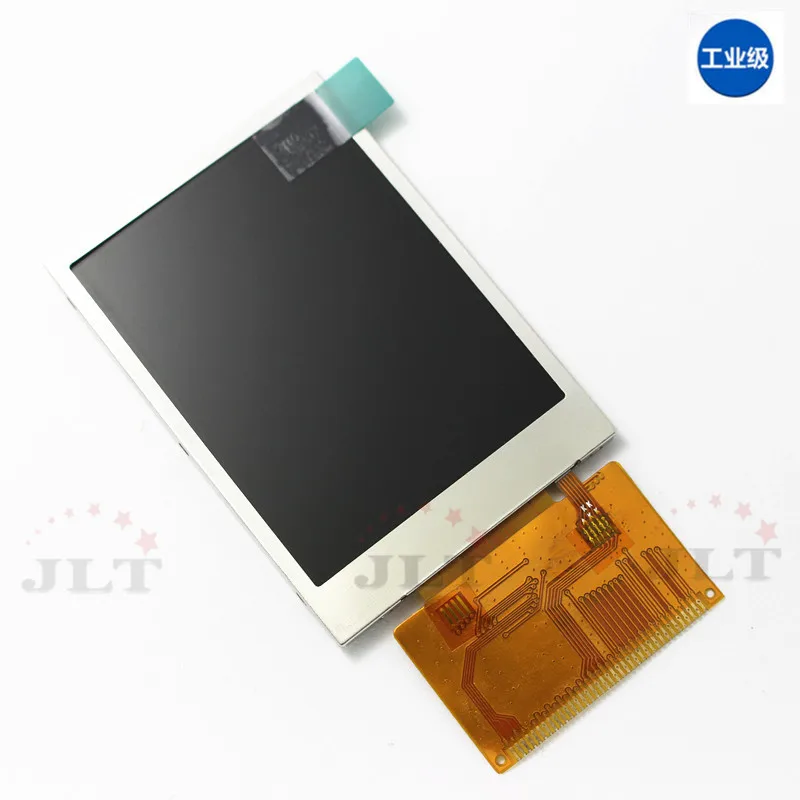

2.8-inch TFT LCD (E) HD color screen resolution 240x320 For instrumentation, household appliances, etc. image 1

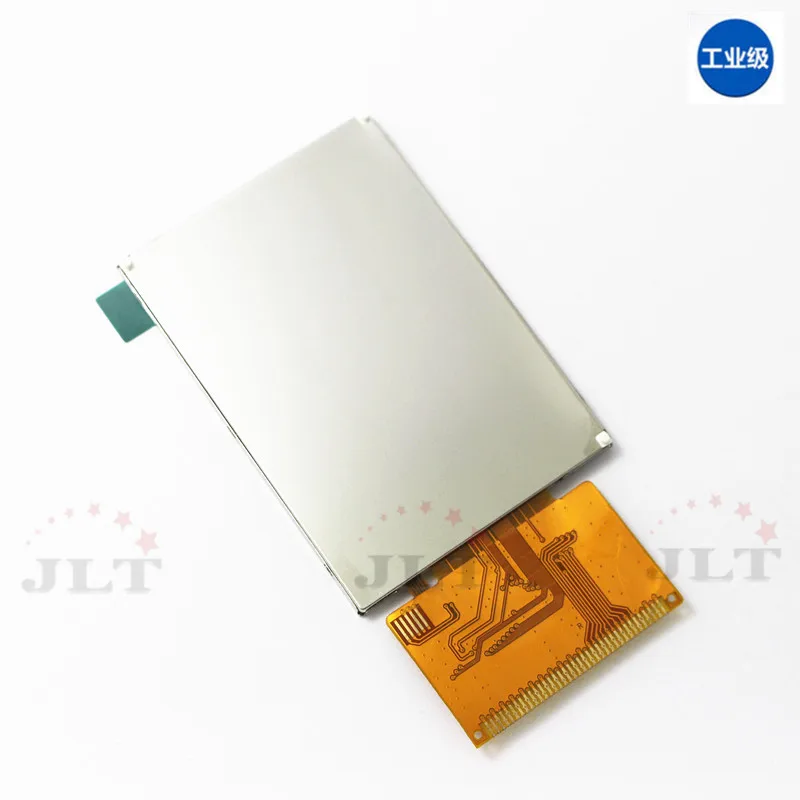

2.8-inch TFT LCD (E) HD color screen resolution 240x320 For instrumentation, household appliances, etc. image 2

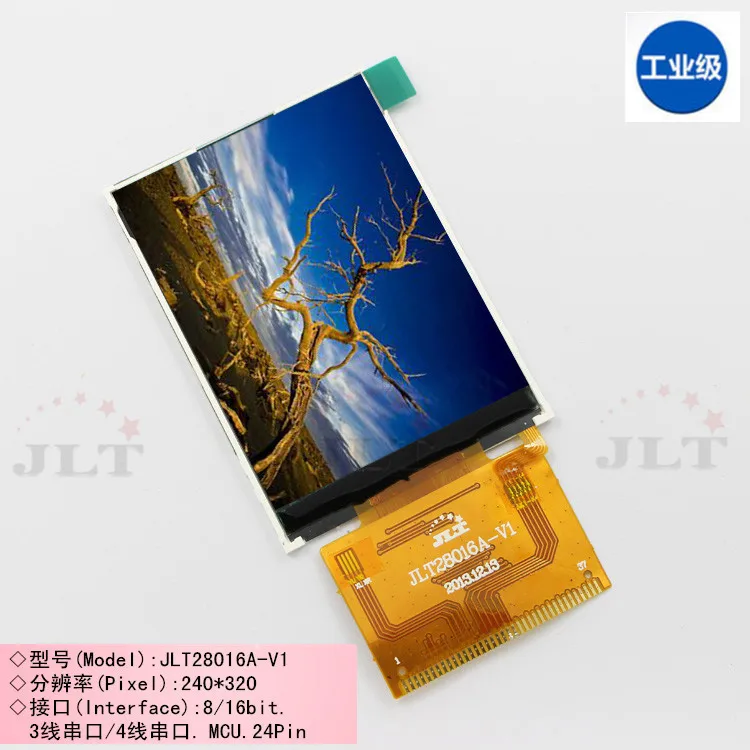

2.8-inch TFT LCD (E) HD color screen resolution 240x320 For instrumentation, household appliances, etc. image 3

2.8-inch TFT LCD (E) HD color screen resolution 240x320 For instrumentation, household appliances, etc.

US $10.98

Description

I am a 2.8 inch HD color LCD screen. It has the characteristics of small area, wide viewing angle and high pixel. The thickness of the product is only 2.25mm. The screen has a resistive touch control. The small 43.2*57.6 mm active area gives you a rich, colorful viewing experience. Widely used in instrumentation, household appliances, communication equipment, industrial equipment and electronic toys. It is the best display screen for makers DIY.

Basic Information

Panel brand: CMO Number of interfaces:37PIN Resolution:240X320 Color:65K/262K Driver IC: HX8347D Interface Types: Parallel/Serial interface (8-bit. 16-bit. SPI can be selected by hardware) Active area:43.2*57.6 mm Thickness:2.25 mm Touch type:R Touch pad

Interface definition

PIN Name Description Circuit Connection 1 DB0 data cable connected to normal IO port 2 DB1 data cable connected to ordinary IO port 3 DB2 data cable connected to ordinary IO port 4 DB3 data cable connected to ordinary IO port 5 GND Power Ground Connected to the negative pole of the power supply 6 VCC power supply VCC (2.8V/3.3V) connected to the positive pole of the power supply 7 CS LCD driver chip select signal Connect to normal IO port 8 RS register selection RS=1: Write parameters. Data.RS=0: Write command Connect to normal IO port 9 WR/SCL write enable signal. Active low connected to normal IO port (SPI SCL) 10 RD read enable signal. Active low connected to normal IO port 11 IM0 select bit. The circuit can be left floating. Empty 12 X+ touch screen XL connected to touch chip analog terminal XL 13 Y+ touch screen YU connected to touch chip analog terminal YU 14 X- touch screen XR connected to touch chip analog terminal XR 15 Y- touch screen YD connected to touch chip analog terminal YD 16 LEDA backlight positive (connected to 3.1-3.4V) connected to 3.1-3.4V 17 LED1 backlight negative pole connected to backlight power supply negative 18 LED2 backlight negative pole connected to backlight power supply negative 19 LED3 backlight negative pole connected to backlight power supply negative 20 LED4 backlight negative pole connected to backlight power supply negative 21 SDA SPI data signal Normal IO 22 DB4 data cable connected to ordinary IO port 23-30 DB8-DB15 data cable Connect to normal IO port 31 RESET LCD driver chip reset signal. Low level reset Connect to normal IO port or hardware reset circuit 32 VCC power supply VCC (2.8V/3.3V) Connected to the positive pole of the power supply VCC (2.8V/3.3V) 33 IOVCC power supply VCC (1.8V/2.8V/3.3V) Connected to the positive pole of the power supply VCC (2.8V/3.3V) 34 GND Power Ground Power Ground 35 DB5 data cable connected to ordinary IO port 36 DB6 data cable connected to ordinary IO port 37 DB7 data cable connected to normal IO port

Related products

FAQ

1. Does the product have after sales service? Yes.We have.

2.What is the quality of the goods? We are a manufacturer and seller of goods. So guarantee the high quality of the goods.

3. Can I customize the screen? As long as the number of custom screens reaches more than 200. Pay for 50% deposit can be customized.

4. Can I get free shipping? Free shipping within a certain amount.

5.Can enjoy more discounts on purchases? You can enjoy more discounts when you purchase more.

6. Can I request a refund? If you receive the goods within 7 days. You can apply for a return/refund/exchange.If you are not satisfied.

Package Content

Weight: 0.145 kg 2.8inch tff lcd (E)(JLT28016A) x 1
