AD8318 Module Logarithmic Detector Logarithmic Amplifier Power Detection 1M-8GHz RF Power Meter
AD8318 Module Logarithmic Detector Logarithmic Amplifier Power Detection 1M-8GHz RF Power Meter image 1
AD8318 Module Logarithmic Detector Logarithmic Amplifier Power Detection 1M-8GHz RF Power Meter image 2
AD8318 Module Logarithmic Detector Logarithmic Amplifier Power Detection 1M-8GHz RF Power Meter image 3

AD8318 Module Logarithmic Detector Logarithmic Amplifier Power Detection 1M-8GHz RF Power Meter

US $45.08 -20%

US $37.57



Highlights:

AD8318 is a demodulation logarithmic amplifier, which can accurately convert the RF input signal to the corresponding dB scale output voltage. For 1MHz to 6GHz signals, it can maintain accurate logarithmic consistency and work at a maximum of 8GHz.



Features:

*Broadband: 1MHz to 8GHz

*High Precision: ±1.0dB (55 dB range, frequency below 5.86Hz)

*Temperature stability: ±0.5dB

*Low Noise Measurement/Controller Output (VOUT)

*Pulse response time: 10ns/12ns (down/up)

*Integrated Temperature Sensor

*Small size LFCSP package

*Turn-off characteristics: <1.5mW(5V)

*Single power supply: 5V (68mA)

*Manufacturing by High Speed SiGe Process



Parameters:

*[Name]: AD8318 Logarithmic Detector

*[Size]: 37mm X33mm (Cavity)

*[Power supply voltage range]:5V



Package include:

module*1

PDF schematic*1:Please contact customer service after purchase, we will send the information to your mailbox

Store measured data:

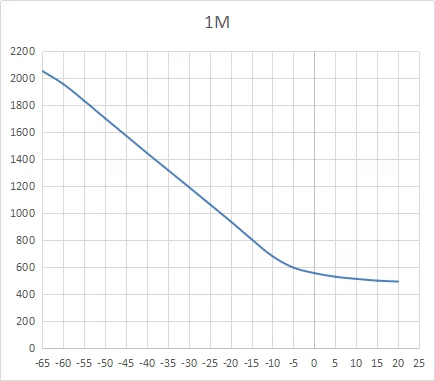

模块实测图1模块实测图模块实测图3
模块实测图4模块实测图5
模块实测图6模块实测图7


Figure1PIN1 拷贝

分割
