Elegoo Arduino Pro Mega 2560 R3 Project The Most Complete Ultimate Starter Kit w TUTORIAL for Arduino UNO Nano EL-KIT-008

US $54.99



  • The MEGA2560 complete starter kit with more than 200pcs components, premium quality for Arduino kit

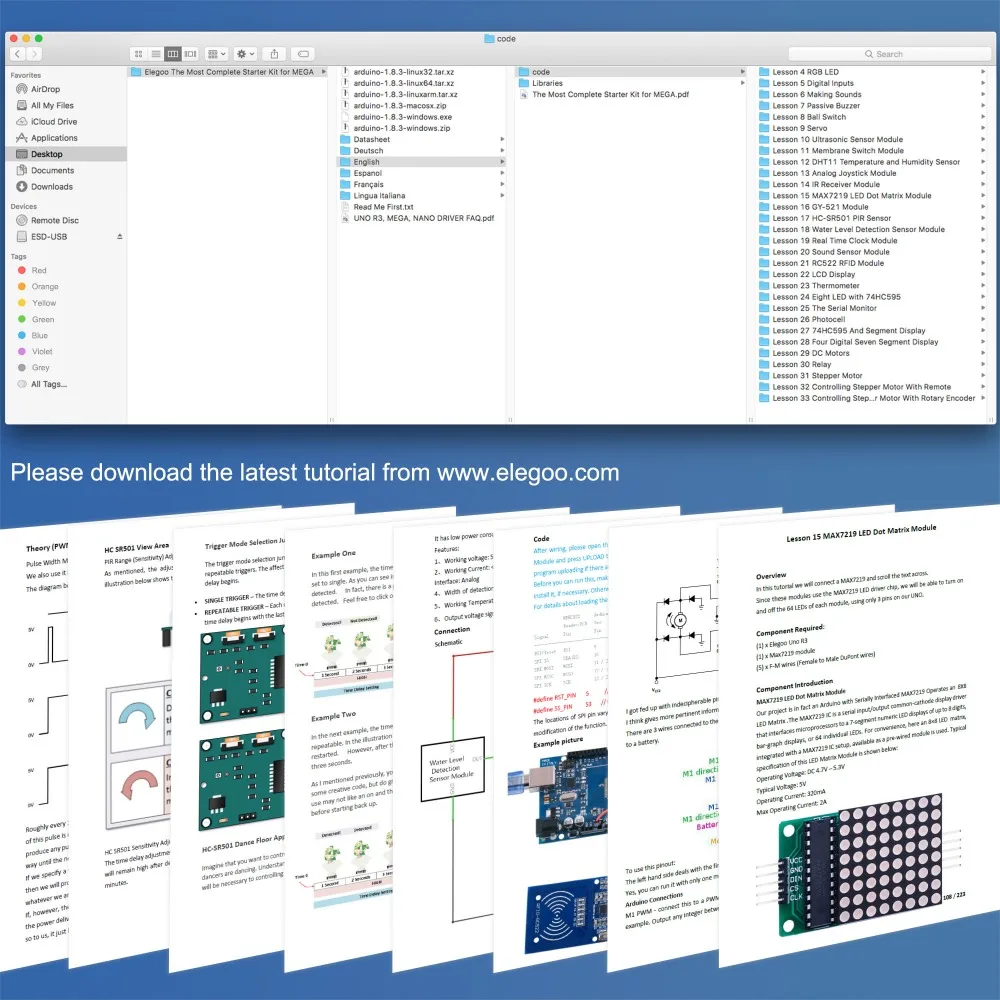

  • Free pdf tutorial in the cd (more than 35 lessons)
  • Lcd1602 module and gy-521 sensor module with pin header ( not need to solder by yourself)
  • Nice package with clear listing and surprise including a nice small box to keep the widget such as LED, IC, buttons, diodes, etc
  • We have always cared about the customer experience and improve the product function details
Specifications for this item
Model Number              EL-KIT-008
Number of Items             1
Part Number              EL-KIT-008
UPC             746591610586
Brand Name ELEGOO
EAN 0746591610586
Fabric Type N/A
Is Assembly Required? false
Item Weight 2.15  pounds

Starter kit that everyone can use to learn electronics and programming

Electronics is not as complicated as you imagine especially with Elegoo MEGA 2560 Starter Kit. For advanced users like professional lab engineers, electronic major students and experienced Arduino hobbyists, they can use this kit to do various kinds of tests and experiments with so many sensors available at hand.

What about novice users who don't have any electronics knowledge? Fear not amigo. Just follow our tutorial enclosed and step by step you will come to realize that learning electronics is more fun than you ever expected with this amazing sensor kit.

It’s a good choice and perfect gift for your friends, family or kids who are obsessed with electronics, programming or robotics to take their first steps on electronics journey!



The most complete starter Kit with high quality components and sensors

Quantity and quality are both important here in Elegoo MEGA 2560 starter kit. The most essential parts in this kit are MEGA 2560 controller board and expansion board, which is a perfect Arduino clone with excellent product finish. Besides, we offer other over 60 kinds of components and sensors from small parts like LED diodes, resistors and potentiometer to big parts like LCD1602, RFID module and 830 tie-points breadboard, which meet your demands for your different projects either it is simple or complex.

Sturdy quality is definitely the most important thing to Elegoo even with so many components provided we never compromised on the quality. Instead we keep improving our product quality in our own factory and we produce the products by ourselves under high standards and strict quality control. Pins and wires on some of the parts like LCD16502 and motors have been pre-soldered which is very convenient and saves your time.







LCD1602 Display module

LCD1602 module is a display that has an LED backlight and can display two rows with up to 16 characters on each row. You can see the rectangles for each character on the display and the pixels that make up each character. The display is just white on blue and is intended for showing text.

Lining up the display with the top of the breadboard helps to identify its pins without too much counting, especially if the breadboard has its rows numbered with row 1 as the top row of the board. Do not forget, the long yellow lead that links the slider of the pot to pin 3 of the display. The 'pot' is used to control the contrast of the display.

1

DC Motors and L293D Transistor

In this project you will learn how to control a small DC motor using an UNO R3 and a L293D transistor, which is a very useful chip. It can actually control two motors independently. We are just using half the chip in this lesson, most of the pins on the right hand side of the chip are for controlling a second motor.

L293D is quadruple high-current half-H drivers and designed to provide bidirectional drive currents of up to 1 A at voltages from 4.5 V to 36 V. The L293D is also designed to provide bidirectional drive currents of up to 600-mA at voltages from 4.5 V to 36 V and drive inductive loads such as relays, solenoids, dc and bipolar stepping motors, as well as other high-current/high-voltage loads in positive-supply applications.

2

74HC595 Shift Register and LEDs

74HC595 is a Serial to Parallel Converter which has eight outputs (perfect) and three inputs that you use to feed data into it a bit at a time.

This chip makes it a little slower to drive the LEDs (you can only change the LEDs about 500,000 times a second instead of 8,000,000 a second) but it's still really fast, way faster than humans can detect, so it's worth it!

74HC595 shift register is a type of chip that holds what can be thought of as eight memory locations, each of which can either be a 1 or a 0. To set each of these values on or off, we feed in the data using the 'Data' and 'Clock' pins of the chip.

3




Product description

Elegoo Inc. is a professional manufacturer and exporter that is concerned with the design, development production and marketing of arduino, 3d printers, raspberry pi and STM32.
Our Dream is to make the best price and best quality produce for customers.
So we would like to receive your valuable suggestions for our products and we can improve them for you.

Component listing:
25pcs LED ( white,yellow,blue,red,green)
1pcs RGB LED
10pcs Ceramic Capacitor(22pf & 104pf)
2pcs Photoresistor
1pcs Thermistor
5pcs Diode Rectifier (1N4007)
4pcs Electrolytic Capacitor (10UF 50V & 100UF 50V)
10pcs NPN Transistor (PN2222 & S8050 )
1pcs Tilt Switch
5pcs Button (small)
1pcs 1 digit 7-segment Display
1pcs 4 digit 7-segment Display
1pcs Sound Sensor Module
1pcs LCD1602 Module ( with pin header)
1pcs IC L293D
1pcs IC 74HC595
1pcs Active Buzzer
1pcs Passive Buzzer
1pcs RTC Module
1pcs DHT11 Temperature and Humidity Module
2pcs Potentiometer
1pcs Rotary Encoder Module
1pcs Joystick Module
1pcs Keypad Module
1pcs 5V Relay
1pcs IR Receiver Module
1pcs MEGA2560 Controller Board
1pcs Breadboard
1pcs Servo Motor (SG90)
1pcs Stepper Motor
1pcs ULN2003 Stepper Motor Driver Board
1pcs Prototype Expansion
1pcs Power Supply Module WARNING: Pls. do not use the voltage higher than 9V
1pcs HC-SR501 PIR Motion Sensor
1pcs Ultrasonic Sensor
1pcs GY-521 Module ( with pin header)
1pcs 3V Servo Motor
1pcs MAX7219 Module
1pcs Remote
1pcs 9V 1A Power Supply
1pcs 65 Jumper Wire
1pcs Water Lever Sensor
1pcs USB Cable
1pcs 9V Battery with DC
1pcs RC522 RFID Module
120pcs Resistor (10R/100R/220R/330R/1K/2K/5K1/10K/100K/1M)
20pcs Female-to-male Dupont Wire

Safety Directive Age Warning :
Not suitable for children under 10 years. For use under adult supervision

2560(20170719 256020171012 256020170926
