Raspberry Pi 3 Model B 5MP Night Vision Camera OV5647 Fisheye Webcam 1080P Wide-angle Camera Module for Raspberry Pi 3B+/3B/2B
Raspberry Pi 3 Model B 5MP Night Vision Camera OV5647 Fisheye Webcam 1080P Wide-angle Camera Module for Raspberry Pi 3B+/3B/2B image 1
Raspberry Pi 3 Model B 5MP Night Vision Camera OV5647 Fisheye Webcam 1080P Wide-angle Camera Module for Raspberry Pi 3B+/3B/2B image 2
Raspberry Pi 3 Model B 5MP Night Vision Camera OV5647 Fisheye Webcam 1080P Wide-angle Camera Module for Raspberry Pi 3B+/3B/2B image 3
Raspberry Pi 3 Model B 5MP Night Vision Camera OV5647 Fisheye Webcam 1080P Wide-angle Camera Module for Raspberry Pi 3B+/3B/2B image 4
Raspberry Pi 3 Model B 5MP Night Vision Camera OV5647 Fisheye Webcam 1080P Wide-angle Camera Module for Raspberry Pi 3B+/3B/2B image 5

Raspberry Pi 3 Model B 5MP Night Vision Camera OV5647 Fisheye Webcam 1080P Wide-angle Camera Module for Raspberry Pi 3B+/3B/2B

US $10.89 -10%

US $9.9



Use case

HTB1uG7BPhjaK1RjSZKzq6xVwXXa6

HTB1CzbMPhTpK1RjSZFMq6zG_VXae



Introduction :

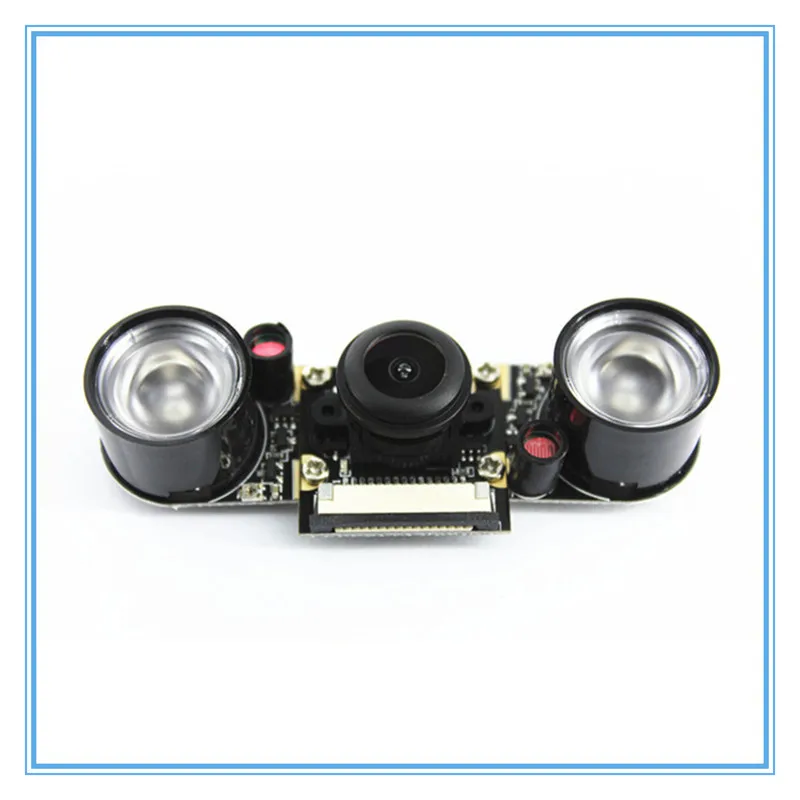

This is a fish eye ( wide angle ) night vision camera for raspberry pi . You can use it to take a wide angle picture or video by this camera . There are 2 infrared LED light for night vision  , the screw hole on the camera is used to both fix the infrared lights and though the power for the lights .You can use a small screwdriver to install the lights easily

Feature :



1. Fish eye wide angle lens



2. Night vision camera



3. 5 MP pixel



4. Support 1080P resolution





Specifications:



1. 5 megapixel OV5647 sensor



2. CCD size : 1/4inch



3. Sensor best resolution : 1080p



4. 4 screw holes: used for attachment IR lights , and for 3.3V electric conduction



5. Focal Length : 2.1



6. Diagonal angle : 130 degree



7. Dimension: 25mm x 24mm



With LED Light Package Included :

1 x Night Vision Camera

2 x IR lights

1 x 15 cm Raspberry Pi 3 Camera Cable

( not include Raspberry Pi )
HTB1m.ocPmzqK1RjSZFpq6ykSXXaY
No LED Light   Package Included :

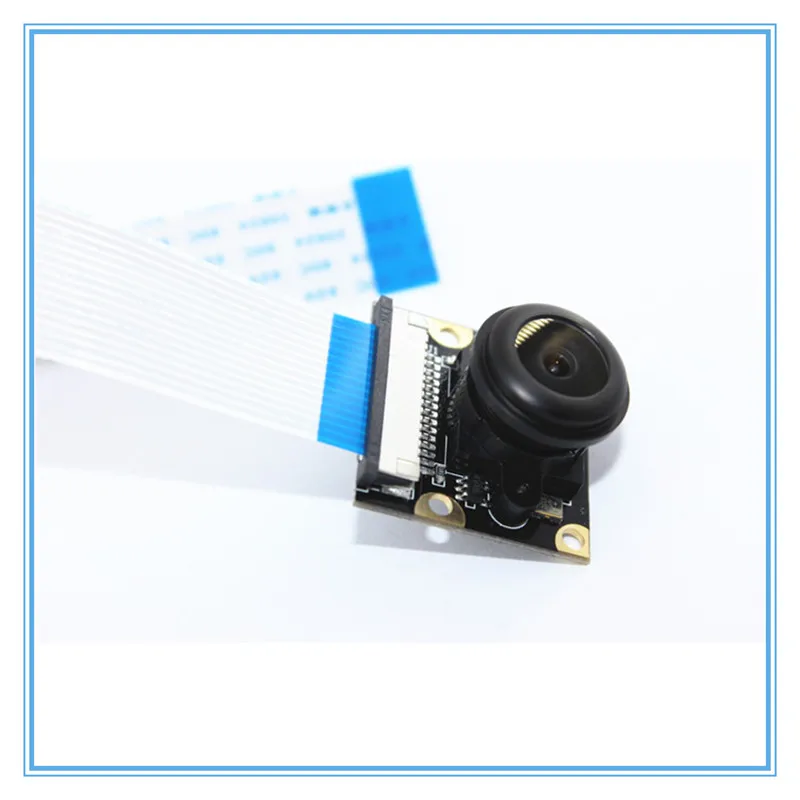

1 x Night Vision Camera

1 x 15 cm Raspberry Pi 3 Camera Cable
( not include Raspberry Pi )
HTB1VEkdPcbpK1RjSZFyq6x_qFXal

Using steps:

1.Please ensure the raspberry Pi system is the newer version, and open the camera function.Type the command: sudo raspi - config and check the camera function of the fifth.The picture below:


HTB1twGaPrvpK1RjSZPiq6zmwXXaG

2. Then select: Enable

HTB1C2WfPwHqK1RjSZFEq6AGMXXaR

3. Then the system return to the interface itself. Choose the “Finish “ , it will restart:

HTB1twGaPrvpK1RjSZPiq6zmwXXaG

4. After the raspberry pi system restart , you can use raspberry pi camera now.

If you want to take photo, you can run the command : raspistill

For example,input: raspistill –t 2000  -o 1.jpg
-t: ( the time of waiting to take the photo ,5000 is five seconds). – o 1.jpg (1.jpg is command of file)

Tip:

Hardware connection:
1. Soft cable, 90-degree vertical connector, HDMI port next to it. When connecting the contact side facing the HDMI interface.
2. Remove the protective film before using the lens
3. bare boards, pay attention to ESD damage, guard against static electricity!
