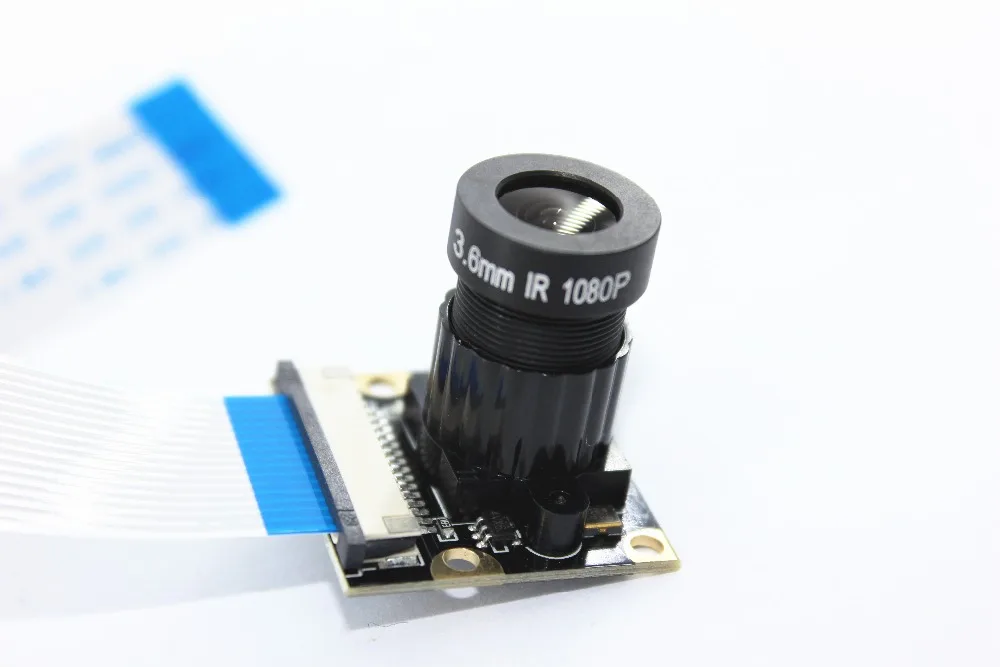

Raspberry Pi 3 Night Vision Fisheye Camera 5MP OV5647 72 Degree Focal Adjustable Camera for Raspberry Pi 3 Model B Plus
Raspberry Pi 3 Night Vision Fisheye Camera 5MP OV5647 72 Degree Focal Adjustable Camera for Raspberry Pi 3 Model B Plus image 1
Raspberry Pi 3 Night Vision Fisheye Camera 5MP OV5647 72 Degree Focal Adjustable Camera for Raspberry Pi 3 Model B Plus image 2
Raspberry Pi 3 Night Vision Fisheye Camera 5MP OV5647 72 Degree Focal Adjustable Camera for Raspberry Pi 3 Model B Plus image 3
Raspberry Pi 3 Night Vision Fisheye Camera 5MP OV5647 72 Degree Focal Adjustable Camera for Raspberry Pi 3 Model B Plus image 4
Raspberry Pi 3 Night Vision Fisheye Camera 5MP OV5647 72 Degree Focal Adjustable Camera for Raspberry Pi 3 Model B Plus image 5

Raspberry Pi 3 Night Vision Fisheye Camera 5MP OV5647 72 Degree Focal Adjustable Camera for Raspberry Pi 3 Model B Plus

US $15

Raspberry Pi 3 Model B+ Camera Kit 5MP Focal Adjustable Night Vision Camera +IR Lights+Cable for Raspberry Pi 3 Model 60-4_

Introduction :

This is a raspberry pi camera kit , include night vision focal adjustable camera , IR sensor lights , camera cable for both Raspberry Pi 3 Model B+ / 3 / 2 .


Features :

1. Supports all revisions of the Raspberry Pi

2. Night vision camera. If you want the night vision function , must install the 2 infrared led lights .

3. Can access sensitive lights . Four screw holes can be installed sensitive infrared light or other fill light , you can switch freely , no longer worried about the light is too weak, underexposed sensitive infrared light

4. Focal adjustable (manually)

5. Use for both Raspberry Pi 3 Model B+ / 3 / 2 and Raspberry Pi Zero W

​6. When use in daylight , to get a better effect , you can use the camera without IR light .





Specification :

1. OV5647 sensor

2. Pixel 5 megapixel

3. Lens : 1/4 5M

4. CCD size: 1 / 4inch

5. Aperture (F): 1.8

6. Focal Length: 3.6mm adjustable

7. Diagonal angle: 72 degree

8. Sensor best resolution: 1080p

9. 4 screw holes : used for attachment and connect power ( 3.3V output )

10. Dimension: 25mm x 24mm

11. Metal frame

12. 3.3V power supply interface can be accessed sensitive infrared lamp or other device

13. Transparent lights for 1W high power infrared light photoreceptor 850

14. Photoresistor : detecting ambient light intensity



Use case

130-1



4098539092_1310794308








With LED Light Package Included :

1 x Night Vision Camera

2 x IR lights

1 x 15 cm Raspberry Pi 3 Camera Cable

( not include Raspberry Pi )

_ (2)



No LED Light Package Included :

1 x Night Vision Camera

1 x 15 cm Raspberry Pi 3 Camera Cable
( not include Raspberry Pi )60-5_
