XL4015 Module Step-Down DC Converter Power Module DC-DC High Power High Efficiency Adjustable function demo board
XL4015 Module Step-Down DC Converter Power Module DC-DC High Power High Efficiency Adjustable function demo board image 1
XL4015 Module Step-Down DC Converter Power Module DC-DC High Power High Efficiency Adjustable function demo board image 2
XL4015 Module Step-Down DC Converter Power Module DC-DC High Power High Efficiency Adjustable function demo board image 3

XL4015 Module Step-Down DC Converter Power Module DC-DC High Power High Efficiency Adjustable function demo board

US $5.07 -15%

US $4.41

Highlights:

XL4015 is a switching buck DCDC converter chip with fixed switching frequency of 180KHz, which can be smaller in size of external components and convenient for EMC design. It has excellent linear adjustment rate and load adjustment rate. The circuit can pass the maximum 6A current and integrate the over-current, over-temperature and short-circuit protection modules.



Module shipping list

XL4015 physical module + PDF information + after-sale technical support + electrostatic bag packaging + shockproof foam

Tips:

(1) The module interface of our store is clear and the performance is stable. Please combine the data provided by our store to perform functional verification under the corresponding experimental conditions.

(2) The basic parameters of this module are in the details page, providing PDF information of the module information; engineering documents are not provided, please be clear to the buyer, if you have any operational problems, you can consult customer service.

(3) Buyers, before using the module, please read the details page of this module to understand the power supply and use restrictions, to avoid damage to the module due to improper operation.

(4) Our modules are guaranteed to provide real module parameters, functions and pictures, and all modules will be shipped after detection.



Module parameters



Module model: XL4015

Module type: switching power supply; DC-DC adjustable step-down power supply module

Input voltage: 8V-36V

Output voltage: 1.25V-32V; adjustable

Output current: 5A (MAX); not recommended for long-term high-current use

Conversion efficiency: 92%; the smaller the input and output pressure difference, the higher the efficiency

Input and output minimum pressure difference: 0.3V

Output power: 75W (MAX); for reference only

Static power consumption: 7mA; for reference only

Switching frequency: 180KHz

Output ripple: 10mV: no load, 20mV: 10V @ 2A

Module enable: None

Module protection: reverse connection protection

Module features: multiple; high power, low noise, low ripple; with output power indicator

Module application: industrial automation control, LED lighting, industrial control equipment, communication equipment, power equipment, instrumentation

Module weight: 22g

Module size: 50 × 50 × 12; length × width × height (mm)

The module becomes hot: the greater the load, the greater the heat; more than 20W is recommended to add a heat sink

Working temperature: civilian grade



Module description



XL4015 has excellent linear regulation rate and load regulation rate chip integrated over-current protection, over-temperature protection, short-circuit protection and other reliability modules. This product adopts XL4015 switch voltage regulator chip, integrated inductor, high-quality aluminum electrolytic capacitor, peak input up to 36V, output 1.25 ~ 32V continuously adjustable.


Explain:

The XL4015 is a 180 kHz fixed frequency PWM step-down DC/DC converter. It can drive a 5A load with high efficiency, low ripple and excellent linear and load adjustment rates.

A minimum number of external components are required, and the regulator is simple to use, including internal frequency compensation and a fixed frequency oscillator. PWM control circuit can linearly adjust duty cycle from O to 100%. Built-in overcurrent protection function, when triggered by short circuit protection function, the operating frequency is reduced from 180 kHz to 48 kHz.

Built-in internal compensation blocks to reduce the number of external components



Chip characteristics:

8V-36V Wide Voltage Input

The output can be adjusted from 1.25V to 32V.

Maximum duty cycle 100%

Minimum reduction of 0.3V

Fixed switching frequency of 180 kHz

5A Constant Output Current Capability

Internal Optimized Power MOSFET

Efficiency can be as high as 96%.

note:The above chip features are only used as user selection, not equivalent to module features.

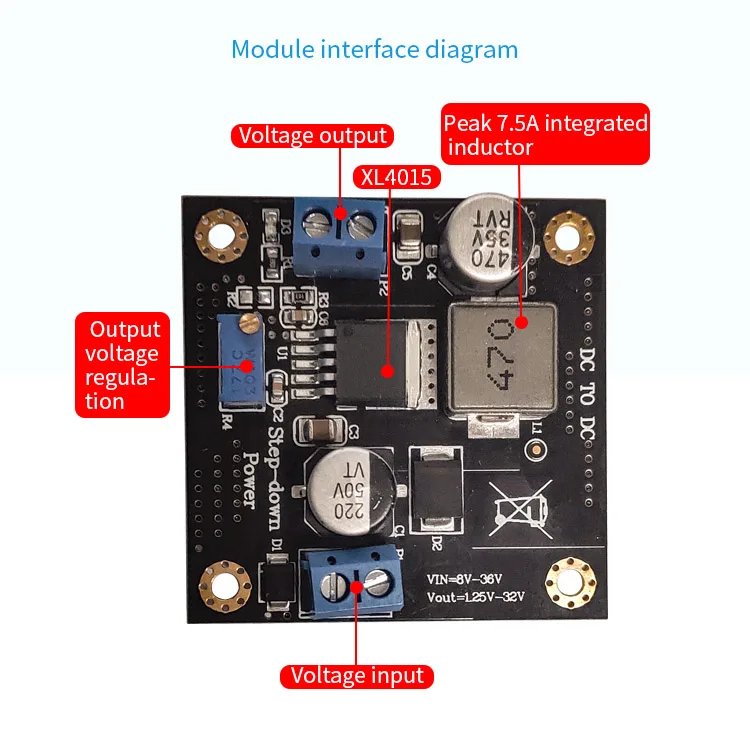

smt详情4-接口图
smt详情5-尺寸图

Precautions for using the module



(1) The module belongs to the step-down type module, the input voltage needs to be greater than the output of more than 1V to stabilize the output.

(2) The heating of the module is mainly determined by the input and output voltage difference and the load current. Please choose and use the power module reasonably. Generally, you need to reserve 30% of the surplus.

(3) The module generates heat during use, please purchasers to enhance heat dissipation according to the actual situation, when there is a large load; heat sinks, air cooling, etc. can be added appropriately.

(4) When using capacitive or inductive loads, the instantaneous current of the load cannot be too large, otherwise the module may be damaged.



Frequently asked questions

Q: Why the output voltage of the module cannot be greater than the input voltage?

A: The module is a step-down module and cannot be boosted; the maximum output voltage will be less than the input voltage of about 0.3V.
