Partaker Elite Z16 19 Inch PC Desktop All In One With Intel Core I5 3317u
Partaker Elite Z16 19 Inch PC Desktop All In One With Intel Core I5 3317u image 1
Partaker Elite Z16 19 Inch PC Desktop All In One With Intel Core I5 3317u image 2
Partaker Elite Z16 19 Inch PC Desktop All In One With Intel Core I5 3317u image 3
Partaker Elite Z16 19 Inch PC Desktop All In One With Intel Core I5 3317u image 4

Partaker Elite Z16 19 Inch PC Desktop All In One With Intel Core I5 3317u

US $576

  111Z7 i5 3317u 4 Z8 1037u 5



  • 19 inch led touch panel pc. Typical 1280*1024 resolution. Compact, fully functional,all the power and functionality of a desktop computer in a all in one design,powered by intel celeron j1900 processor, ideal for industrial and commercial applications. suit for multiple application,industries, car repair shops, security, factory, business, fanancial and projects.



  • Windows 7 Ultimate/10 pro (64-bit) preferred/linux ubuntu as optional, set up is effortless and it's ready to run straight out of the box.allows you to install software, games, apps and enjoy video, music, photo,support most online games and pc games, like warcraft, counter-strike (cs), support some 3d games but this is integrated graphic not independent cards.



  • Fanless passive cooling design:silent solution that’s ultra energy-efficient.the advanced fanless passive cooling design maximizes heat dissipation, meaning all operations can be conducted in absolute silence. business friendly features: auto power-on option can be enabled within the bios menu.0 noise,low consumption,very slim, can stand on desk or embeded/mountable.

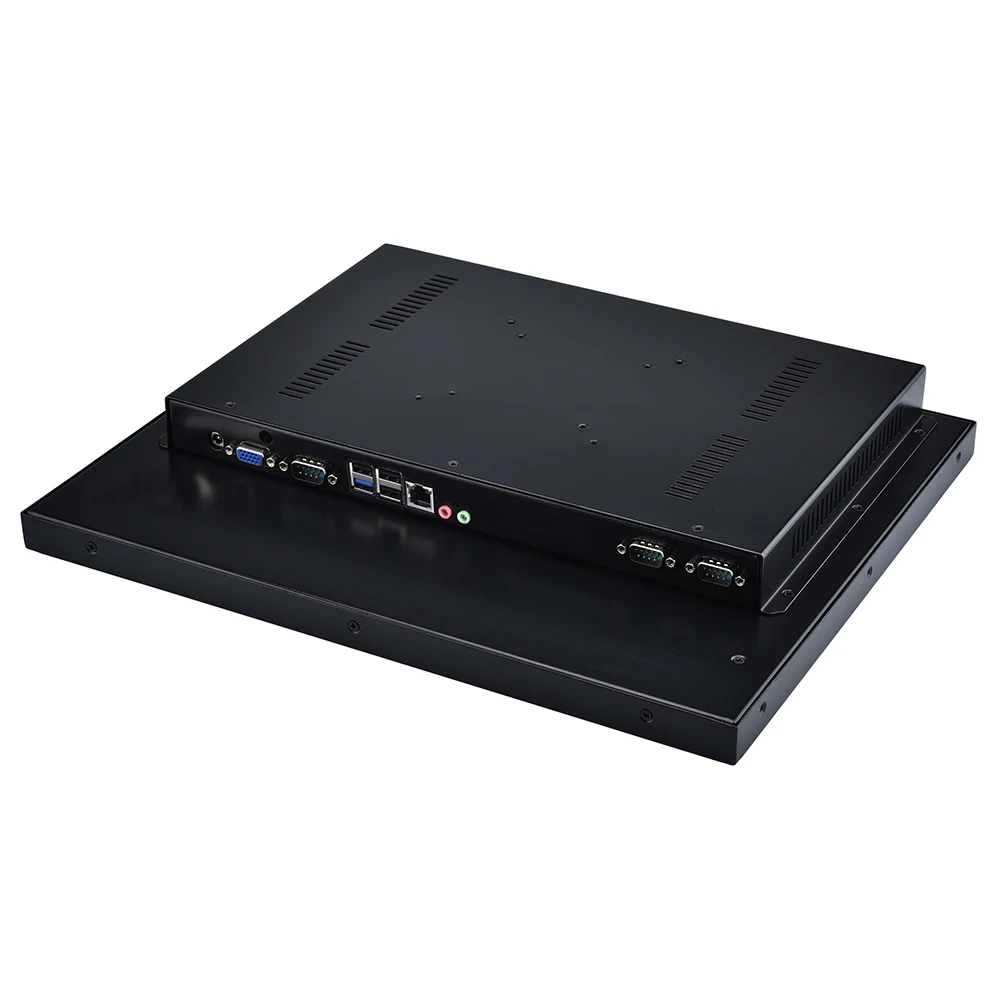

  • Designed with 3*RS232+VGA+LAN+3*USB2.0+1 USB 3.0+DC+Audio In &Out,aesthetic design and reasonable interface layout.



  • Size at 432.5*356.5*57.7(mm),with power cord,auto power-on option could be customized,all use big brand memory and ssd/hdd with quality assurance.



 19 Inch LED Industrial Panel PC Taiwan 5 Wire Touch Screen,Win7/10/Linux Ubuntu,Intel Quad Core J1900 Partaker Z16



This model can install 5 types processor CPU:



1: Bay Trail-D-Celeron J1900 Quad Core 2.0G(Max. 2.4GHz)

2: Intel® Celeron Processor 3855U (2M Cache, 1.60 GHz)

3: Intel®Core I5 Dual Core(Max. 2.6GHz)

4: Intel® Core I7 Dual Core (Max. 2.8GHz)

5: Bay Trail-D-Celeron J1800 Duad Core 2.41G(Max. 2.58GHz)





system 4G RAM 64G SSD


systemDescription

Model Number: Partaker Z16
Screen Size: 19 Inch
Opening Hole Size: 334*232mm (Length*Width)
Screen Type: Taiwan High Temperature 5 Wire Touch Screen
CPU: Bay Trail Celeron J1900 Quad Core 2.0Ghz to 2.4Ghz
OS: Windows Or Linux
RAM/SSD/HDD: Maximum 8G RAM, 1* MSATA + 1*2.5 Inch HDD
I/O: 3*RS232+VGA+LAN+3*USB2.0+1 USB 3.0+DC+Audio In &Out
I/O: Optional LPT, Default Without
Physical Dimension: 432.5*356.5*57.7(mm)
Gross Weight: 10.5 KGS
Panel Structure:
Panel Size: 19 Inch LED Screen
Resolution: 1280*1024
Display Brightness: 250cd/m(2)
Contrast: 1000 : 1
Response Time: 5ms
Touch Type: Using high-quality resistance touch screen click life> 1 million times
Usage Environment:
Operating Temperature: -10℃~60℃ Surface Air Flow
Operating Humidity: 10% ~ 95% @ 40 ℃ without condensation
Storage Temperature: -20 ℃ ~ 70 ℃
Installation Method:
1: Embedded (Recommended)
2: Wall-mounted
3: Desktop
4: Cantilevered
5: Other Installation Methods
Motherboard:
BIOS: AMI 32Mbit,Support Diskless Start, Wake-Up on Lan, Call Boot (Power On Boot), Watchdog And Other Functions
Motherboard: Fanless Design
I/O Interface:
Network: 1* Realtek 8111E 10/100/1000M
Audio: RealtekALC662 HD Audio
Package Information:
Package Size: 47.5CM(L)*43.5CM(W)*15CM(H)
Physical Weight: 5.9KG / 7.05KG(Net/Gross)
Power Supply: Input: 180-240V~1.0A 50-60Hz Output: 12VDC 4A MAX
Power Cord: Power Cord*1
Touch Pen: Resistance touch pen*1 (10 capacitive touch screen without touch pen)
Buckle: Embedded Installation Buckle* 1 Set



Specification:

Model Number:

Partaker Elite Z16

Screen Size:

19 Inch

Opening Hole Size:

334*232mm (Length*Width)

Screen Type:

Taiwan High Temperature 5 Wire Touch Screen

CPU:

Bay Trail Celeron J1900 Quad Core 2.0Ghz to 2.4Ghz

OS:

Windows Or Linux

RAM/SSD/HDD:

Maximum 8G RAM, 1* MSATA + 1*2.5 Inch HDD

I/O:

3*USB2.0/1*USB3.0/3*RS232

I/O:

1*VGA/1*RJ45

I/O:

1*DC/MIC-IN&LINE-OUT

Physical Dimension:

432.5*356.5*57.7(mm)

Gross Weight:

10.5 KGS





Opening Hole Size Drawing:

19 Inch LED Industrial Panel PC Taiwan 5 Wire Touch Screen,Win7/10/Linux Ubuntu,Intel Quad Core J1900 Partaker Z16







Features:

19 Inch LED Screen, Large Screen

Stable performance, support 7 * 24-hour uninterrupted operation

Durable, dust-proof, high and low temperature resistance, impact resistance, anti-interference

Optional WiFi module, support for 802.11b / g / n

Standard VESA screw hole, can choose the installation method flexibly

Support Win7, Win8, Win10, Linux etc….



Panel Structure:

Panel Size

19 Inch LED Screen

Resolution

1280*1024

Display Brightness

250cd/m(2)

Contrast

1000 : 1

Response Time

5ms

Touch Type

Using high-quality resistance touch screen click life> 1 million times



Usage Environment:

Operating Temperature:

-10℃~60℃ Surface Air Flow

Operating Humidity:

10% ~ 95% @ 40 ℃ without condensation

Storage Temperature:

-20 ℃ ~ 70 ℃



Installation Method:

1. Embedded (Recommended)

2. Wall-mounted

3. Desktop

4. Cantilevered

5. Other Installation Methods



Motherboard:

BIOS:AMI 32Mbit,Support Diskless Start, Wake-Up on Lan, Call Boot (Power On Boot), Watchdog And Other Functions

Display Mode:Single Display; VGA+LVDS,Synchronous / Asynchronous Dual Display

Motherboard:  Fanless Design



I/O Interface:

Network: 1* Realtek 8111E 10/100/1000M Adaptive Network Card Chip

Audio: Realtek®ALC662 HD Audio Decoding Core



Quality Inspection:

Each Partaker Industrial All In One Computer will conduct a number of strict testing, including performance testing, temperature testing, vibration, pressure, LED screen aging, interface testing, electronic load, touch screen detection

Before shipment, the appearance of Partaker Industrial All In One Computer, performance, interface, 24-hour aging test to ensure that each is superior quality.



Company Profile:

Focus on the industrial sector for 8 years, your most reliable suppliers

INCTEL Technology focus on All in One touch-screen, infrared touch All in One Computer, resistance touch All in One PC, advertising, touch products such as the development and production. For industrial control, commercial display, advertising, business meetings, games, entertainment, medical equipment and other fields, introduced a professional application solutions.



Package Information:

Package Size

47.5CM(L)*43.5CM(W)*15CM(H)

Physical Weight

5.9KG / 7.05KG(Net/Gross)

Power Supply

Input: 180-240V~1.0A 50-60Hz Output: 12VDC  4A MAX

Power Cord

Power Cord*1

Touch Pen

Resistance touch pen*1 (10 capacitive touch screen without touch pen)

Buckle

Embedded Installation Buckle* 1 Set
