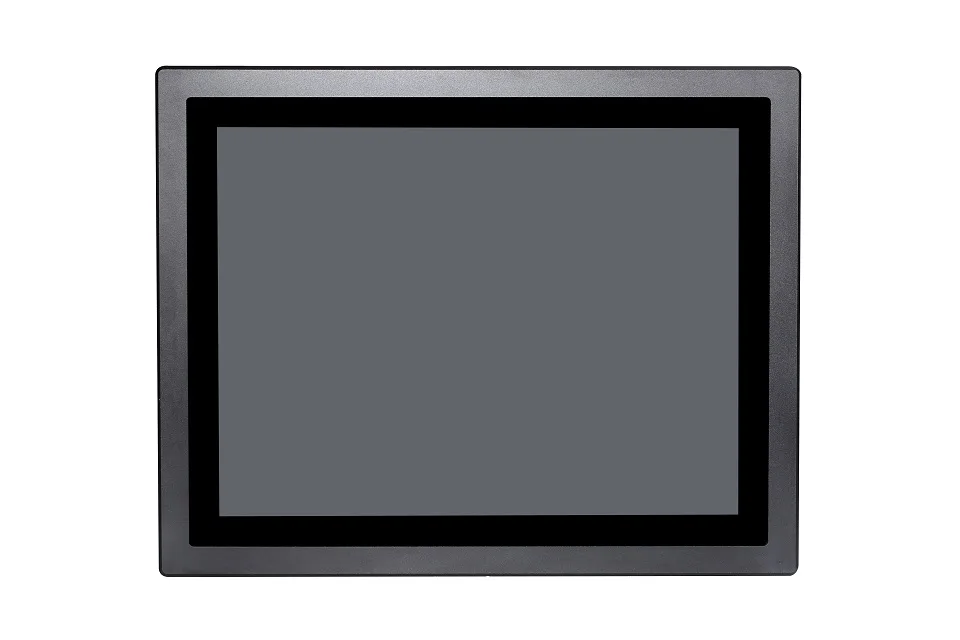

15 inch LED LCD touch panel pc with front panel IP65 level. Typical 1024*768 resolution. Compact, fully functional,all the power and functionality of a desktop computer in a all in one design,powered by intel celeron j1800 processor, ideal for industrial and commercial applications. suit for multiple application,industries, car repair shops, security, factory, business, fanancial and projects.
Barebone system without ram, stroage, free to put momory, ssd, hdd at your own, hardware compatible with all windows/linux distributions
Fanless passive cooling design:silent solution that’s ultra energy-efficient.the advanced fanless passive cooling design maximizes heat dissipation, meaning all operations can be conducted in absolute silence. business friendly features: auto power-on option can be enabled within the bios menu.0 noise,low consumption,very slim, can stand on desk or embeded/mountable.

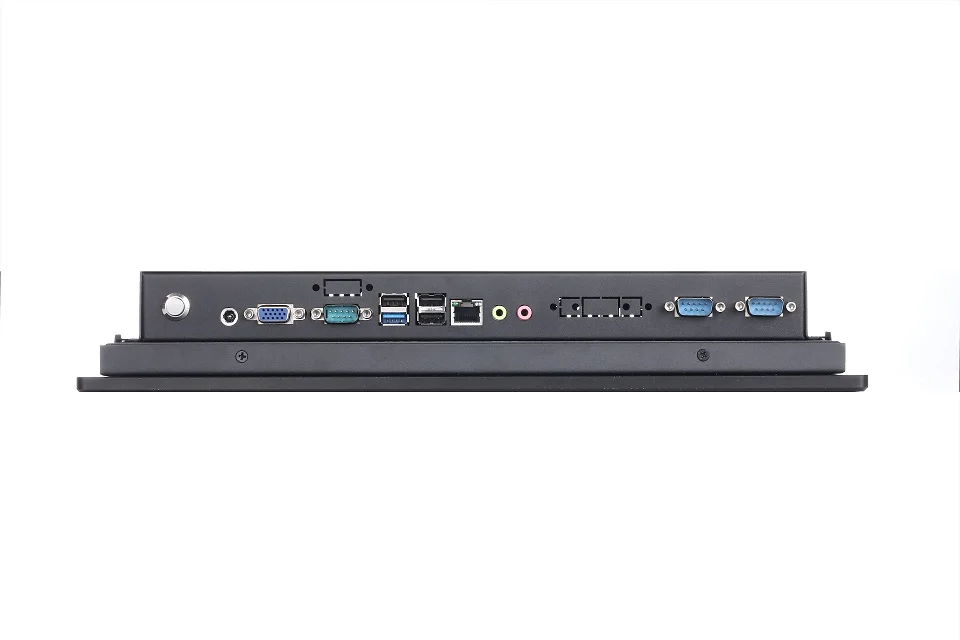

Designed with 2*RS232+VGA+HDMI+LAN+4*USB2.0+DC+Audio in&out,aesthetic design and reasonable interface layout.
Size at 377.3* 303.3* 60.6(mm),with power cord,auto power-on option could be customized,all use big brand memory and ssd/hdd with quality assurance.
This model can install 5 types processor CPU:
1: Bay Trail-D-Celeron J1900 Quad Core 2.0G(Max. 2.4GHz)
2: Intel® Celeron Processor 3855U (2M Cache, 1.60 GHz)
3: Intel®Core I5 Dual Core(Max. 2.6GHz)
4: Intel® Core I7 Dual Core (Max. 2.8GHz)
5: Bay Trail-D-Celeron J1800 Duad Core 2.41G(Max. 2.58GHz)
Model Number: Partaker Z11
Screen Size: 15 inch LED LCD screen
CPU: Intel Core i7 3537U Processor
Graphic: Intel HD Graphics 4000
Material: Aluminum panel + sheet metal
Color: Black (other colors could be customized)
Opening Hole Size: 295*234mm (Length*Width)
Screen Type: 10-point capacitive touch screen
OS: Support Windows 7/8/8.1/10,WES7/8,Linux, Vxworks etc; Except Barebone without RAM,SSD,HDD, and without any system. Others with Windows 7 as the default option, and linux ubuntu or Windows 10 Pro needs to leave the message on the order, thank you.
RAM: SO DIMM 1* DDR3L 1333, Max. 8G RAM
SSD: 1* Msata SSD+ 1* 2.5 Inch HDD
I/O: 3*RS232+VGA+LAN+3*USB2.0+1*USB3.0+DC+Audio in&out
Physical Dimension: 377.3* 303.3* 60.6(mm)
Gross Weight: 5KGS
1: Equipped with LED LCD screen, 1024*768, positive screen meets industrial control display requirements
2: Aluminum panel IP65 waterproof capacitive touch screen, sturdy and durable
3: Optional WIFI module, support 802.11b/g/n
Installation Method: Standard VESA screw hole for flexible installation
Noise: Fanless Design
Display Brightness: 300cd/m(2)
Response Time: 12ms
Click Life: More than 100 million times
IP Protection Level: Front panel IP65
Operating Temperature: -10℃～50℃ Surface Air Flow
Operating Humidity: 10% ~ 95% @ 40 ℃ without condensation
Storage Temperature: -25 ℃ ~ 70 ℃
Panel PC: 1PCS
Power Supply: 1PCS
Power Cord: 1PCS
Embedded Mounting Clip: 4PCS
