Partaker Z8 Intel J1900 Touch Screen All In One Computer With Fan 2G RAM 32G SSD
Partaker Z8 Intel J1900 Touch Screen All In One Computer With Fan 2G RAM 32G SSD image 1
Partaker Z8 Intel J1900 Touch Screen All In One Computer With Fan 2G RAM 32G SSD image 2
Partaker Z8 Intel J1900 Touch Screen All In One Computer With Fan 2G RAM 32G SSD image 3

Partaker Z8 Intel J1900 Touch Screen All In One Computer With Fan 2G RAM 32G SSD

US $437.92 -15%

US $380.8





  • 12.1 inch LED all in one touch panel pc with Taiwan High Temperature 5 Wire Touch Screen. Typical 1024*768 resolution. Compact, fully functional,all the power and functionality of a desktop computer in a all in one design,powered by intel celeron j1900 processor, ideal for industrial and commercial applications. suit for multiple application,industries, car repair shops, security, factory, business, fanancial and projects.



  • (Barebone, Single RAM/SSD/SSD+HDD without system).Others with Windows 7/10 pro as the default system, and linux ubuntu do need to leave us message on the order, thank you. hardware compatible with all windows/linux distributions.



  • Fanless passive cooling design:silent solution that’s ultra energy-efficient.the advanced fanless passive cooling design maximizes heat dissipation, meaning all operations can be conducted in absolute silence. business friendly features: auto power-on option can be enabled within the bios menu.0 noise,low consumption,very slim, can stand on desk or embeded/mountable.



  • Designed with 3*RS232+VGA+LAN+5*USB2.0+1 USB3.0+DC+Audio In &Out,aesthetic design and reasonable interface layout.



  • Size at 309.1*247.5*54(mm),5kgs,with power cord,auto power-on option could be customized,all use big brand memory and ssd/hdd with quality assurance.





Factory Price 12 inch Intel Celeron J1900 LCD Panel Computer Industrial All in One Touch Screen PC





This model can install 5 types processor CPU:

1: Bay Trail-D-Celeron J1900 Quad Core 2.0G(Max. 2.4GHz)

2: Intel® Celeron Processor 3855U (2M Cache, 1.60 GHz)

3: Intel®Core I5-3317u Dual Core(Max. 2.6GHz)

4: Intel® Core I7 Dual Core (Max. 2.8GHz)

5: Bay Trail-D-Celeron J1800 Quad Core 2.41G(Max. 2.58GHz)





Model Number: Partaker Z8
Screen Size: 12.1 Inch
Opening Hole Size: 297*235.5mm (Length*Width)
Screen Type: Taiwan High Temperature 5 Wire Touch Screen
CPU: Intel J1900
OS: Support Windows 7/8/8.1/10,WES7/8,Linux, Vxworks etc; (Barebone, Single RAM, Single SSD or SSD+HDD without any system). Others with Windows 7 pro as the default option, and linux ubuntu or Windows 10 pro do needs to leave us message on the order, thank you.
RAM/SSD/HDD: Maximum 8G RAM, 1* MSATA SSD+ 1* 2.5 Inch HDD

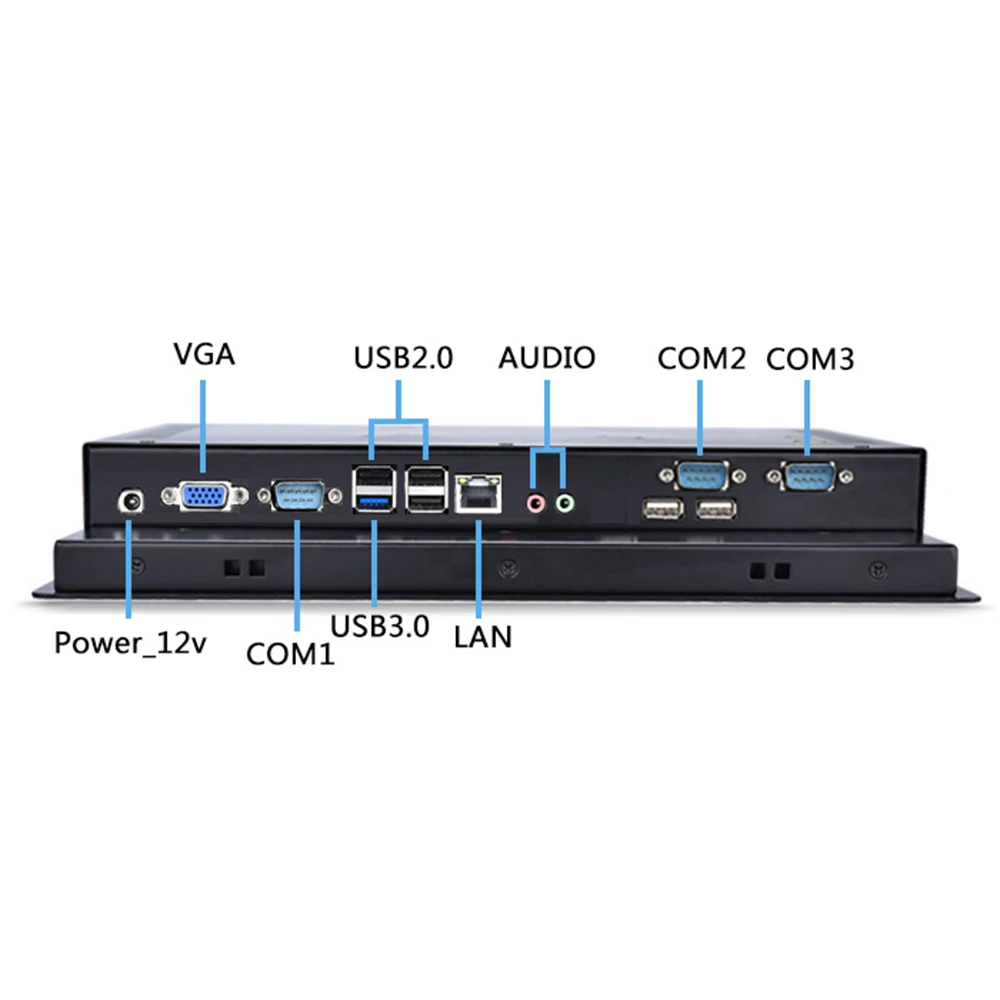

I/O: 3*RS232+VGA+LAN+5*USB2.0+1 USB3.0+DC+Audio In &Out
Physical Dimension: 309.1*247.5*54(mm)
Gross Weight: 5KGS
Features:
1: 12.1 Inch LED Screen, 1024*768
2: 2mm slim panel, embedded design
Display Brightness: 300cd/m(2)
Contrast: 700:1
Response Time: 12ms
Touch Screen: Using Taiwan imported 5-wire high-temperature touch-screen click life> 35 million times
Usage Environment:
Operating Temperature: -10℃~60℃ Surface Air Flow
Operating Humidity: 10% ~ 95% @ 40 ℃ without condensation
Storage Temperature: -20 ℃ ~ 70 ℃
Installation Method:
1: Embedded (Recommended)
2: Wall-mounted
3: Desktop
4: Cantilevered
5: Other Installation Methods
BIOS: AMI 32Mbit,Support Diskless Start, Wake-Up on Lan, Call Boot (Power On Boot), Watchdog And Other Functions
Motherboard: Fanless Design
Network: 1* Realtek 8111E 10/100/1000M
Audio: RealtekALC662 HD Audio
Package Size: 37CM*31CM*13.5CM
Physical Weight: 4KG / 4.7KG(Net/Gross)
Power Supply: Input: 180-240V~1.0A 50-60Hz Output: 12VDC 4A MAX
Power Cord: Power Cord*1
Touch Pen: Resistance touch pen*1
Buckle: Embedded Installation Buckle* 1 Set





system



4G RAM 64G SSD






system



Features:

12.1 Inch LED Screen, 1024*768 Resolution

2mm slim panel, embedded design

Optional WiFi module, support for 802.11b / g / n

Support call on boot, network wake-up

Standard VESA screw hole, can choose the installation method flexibly

Support Win7, Win8, Win10, Linux etc….





Panel Structure:

Panel Size

12.1 Inch LED Screen

Resolution

1024 × 768

Display Brightness

300cd/m(2)

Contrast

700 : 1

Response Time

12ms

Touch Screen

Using high-quality resistance touch screen click life> 100 million times



Usage Environment:

Operating Temperature:

-10℃~60℃ Surface Air Flow

Operating Humidity:

10% ~ 95% @ 40 ℃ without condensation

Storage Temperature:

-20 ℃ ~ 70 ℃



Installation Method:

1. Embedded (Recommended)

2. Wall-mounted

3. Desktop

4. Cantilevered

5. Other Installation Methods



Motherboard:

BIOS:AMI 32Mbit,Support Diskless Start, Wake-Up on Lan, Call Boot (Power On Boot), Watchdog And Other Functions

Display Mode:Single Display; VGA+LVDS, Synchronous / Asynchronous Dual Display

Motherboard:  Fanless Design



I/O Interface:

Network: 1* Realtek 8111E 10/100/1000M Adaptive Network Card Chip

Audio: Realtek®ALC662 HD Audio Decoding Core



Quality Inspection:

Each Partaker Industrial All In One Computer will conduct a number of strict testing, including performance testing, temperature testing, vibration, pressure, LED screen aging, interface testing, electronic load, touch screen detection

Before shipment, the appearance of Partaker Industrial All In One Computer, performance, interface, 24-hour aging test to ensure that each is superior quality.



Company Profile:

Focus on the industrial sector for 8 years, your most reliable suppliers

INCTEL Technology focus on All in One touch-screen, infrared touch All in One Computer, resistance touch All in One PC, advertising, touch products such as the development and production. For industrial control, commercial display, advertising, business meetings, games, entertainment, medical equipment and other fields, introduced a professional application solutions.



Package Information:

Package Size

37CM(L)*31CM(W)*13.5CM(H)

Physical Weight

4KG / 4.7KG(Net/Gross)

Power Supply

Input: 180-240V~1.0A 50-60Hz Output: 12VDC  4A MAX

Power Cord

Power Cord*1

Touch Pen

Resistance touch pen*1

Buckle

Embedded Installation Buckle* 1 Set













-_03-_04-_05  Additional



About Power Cord:

We will ship the type of power cord, based on your area.

Power CordGallery



1 (1)1 (2)1 (3) Z7 Z8 (3)Z7 Z8 (4)Z7 Z8 (8)Z7 Z8 (9)Z7 Z8 (10)


Best Choise with less money,

why not check out immediately?



FANLESS - 0.00dB Noise AIO in the world



We will offer you best service

Do it now !!!

Do you feel INCTEL's enthusiasm and professionalism?



Loving HeartRoseGift





  UT8By__XnXXXXagOFbXJ

Shipping Term:



Free shipping is only applicable to HK, To other countries, we offer reasonable freight rate or even lower than the paid rate (If you made an order, assuming you accept this):



Nommally we ship via DHL, UPS, FEDEX, and EMS, HK Post, there are some explanation,


Flexible shipping cases as belows,



Case 1: Your shipping area is remote location for DHL. You could find out if your area is remote area or not on DHL the website:  raslist.dhl.com/jsp/first.jsp



Case 2: DHL is not allow to use in your area. Like Brazil, AR, Russian ,Kazakhstan. (So we ship via EMS or HK Post)



Case 3: If UPS or DHL are both appliable for your area , we will send it at randomly.
Good news for Russian customers, though DHL, UPS, Fedex etc express are unavailable to deliver to Russia in our area, we choose eEMS(EMS upraded version) to ship parcel by default, safe, fast, with better ability of customs clearance(Russia Customs is strictest in the world). Delivery within about 5-10 working days by e-EMS.



Case 4, Via HK post (mostly Spain prefer by HK post)



Except all of 4 cases, If your address is remote area for us, you should add extra shipping fees for DHL/ UPS/EMS/Fedex etc(welcome to consult our Pre-sales).



Above All, if our dear customer have its own ideas on the shipping method and declared value request, please leave message on the order, or consult our pre-sales.

-_07-_08-_09-_10
